Vertical huge exposure machine for screen printing

Name: Vertical huge exposure machine for screen printing
Brand: Shuoxing
Price: 1 USD

Place of Origin : Shanghai

Brand Name : Shuoxing

Model Number : SE-1728VL

Certification : SGS, ISO9001

Packaging Details : Pallet and wooden case

Delivery Time : 15days

Payment Terms : T/T

Supply Ability : 30sets/month

MOQ : 1set

Contact Now

Large vacuum frame exposure machine are extra heavy-duty and built for years of reliable screen production.

Description: The free standing exposure system consists of the exposing lamp and the independent vacuum copying frame. High actinic light, even light distribution, constant power control, stable wavelength, high vacuum force and long service life of the lamp are the key features for preparing the high quality stencils for half tone jobs and highly dense line stencils.

EXPOSING LAMP (LP-3000)
The reflector angle is computer-aid designed for the best light distribution. The reflector panel is the high quality material imported from Germany.
The position of the exposing lamp can be freely adjusted in accordance to the printing frame sizes.
The exposing time is controlled with timer.

VACUUM COPYING FRAME (SE-VL)
Motor- driven flip over mechanism, the turning from loading position to the vertical position for exposing is being.
The size of the UVB machine is manufactured against the customers' requirement. We can do large size for you.

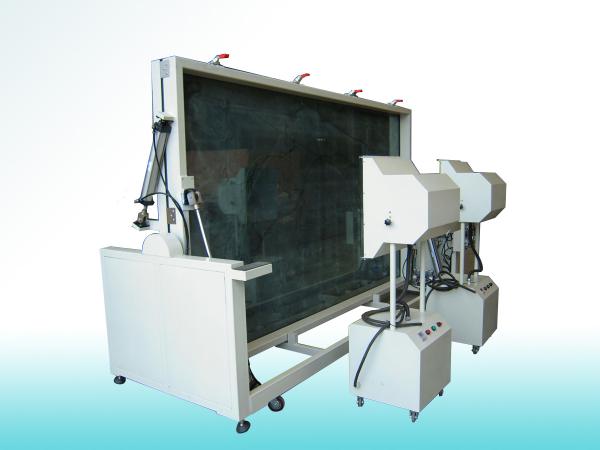

Vertical huge exposure machine for screen printing

Parameters:

Model	SE-1728VL
Max. frame size	1700×2800mm
Max. vacuum power	-600mmHg
Vacuum speed	4L /S
Exposure lamp power	1kw
Electricity	220V 1PH 1KW
Dimension	3500×1100×2250mm
Gross weight	900KG

Model	LP-3000
Exposure lamp	3KW*2PCS
Total electricity	380V 3PH 6KW
Dimension	700×700×1500mm*2PCS
Gross weight	90KG*2PCS
